Built for real off-road adventure —the V14 is engineered to dominate rugged terrain with next-level control and performance. It features INMOTION’s exclusive progressive suspension system, designed to absorb the harshest shocks and deliver an ultra-smooth ride on any surface.
With an industry-leading C40 magnetic steel motor delivering a peak output of 9000W, the V14 generates 850N of wheel tractive force — powerful enough to effortlessly climb inclines of up to 50°.
It’s powered by a Samsung 2400Wh/134V battery pack using high-output cells, giving you a max range of up to 75 miles and support for fast charging. Whether you're crossing trails or steep climbs, this EUC is built to go further, faster, and tougher.
| Feature | Specification |
|---|---|
| Top Speed | 43 mph (70 km/h) |
| Range | 74.5 miles (120 km) |
| Battery Type | 32S4P Samsung 21700 50S |
| Battery Capacity | 2400 Wh / 134V |
| Charge Time | 7 hrs (standard) / 1 hr (with dual 16A chargers) |
| Rated Motor Power | 4000 W |
| Peak Motor Power | 9000 W |
| Max Torque | 200 N·m |
| Hill Climb Angle | Up to 50° |
| Suspension Travel | 85 mm |
| Tire Size | 12 x 3 inches |
| Brake Lights | Yes |
| Headlights | Yes |
| Max Load | 309 lbs (140 kg) |
| Net Weight | 86 lbs (39 kg) |
| IP Rating (Body) | IPX6 |
| Charger Input/Output | 134.4V, 3A |
| Dimensions (L×W×H) | 18.9 x 9 x 26.8 inches (480 x 230 x 680 mm) |
| Easy to Assemble | Yes – Assembly instructions available |
| FAQs Available | Yes – Refer to Knowledge Base |
🧠 Smart Features

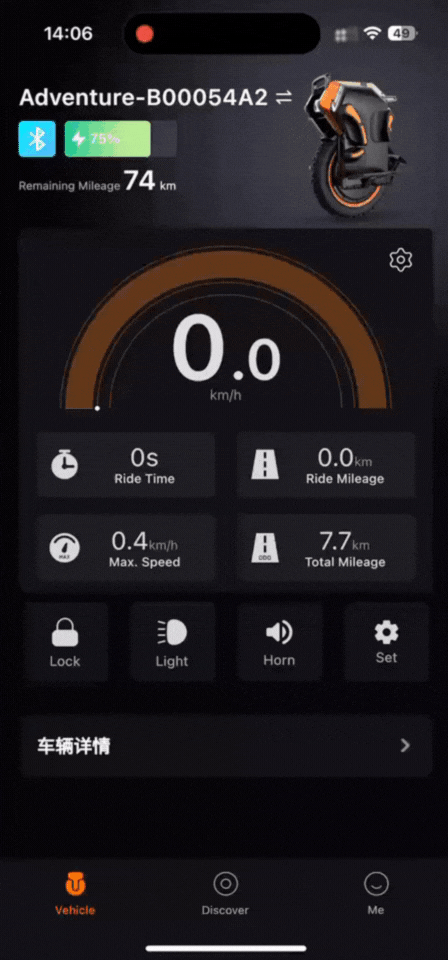

Real-time ride diagnostics via Adventure App
Configurable Ride Modes for terrain, performance, or efficiency
Smart BMS with modular battery testing
Overheat protection for battery and motor
🎯Ideal For
Off-road trail explorers
Long-distance EUC riders
Advanced users who prioritize power, speed & modularity
Anyone looking for the toughest EUC INMOTION has ever made
🛠️ Tutorials & How-Tos
- Performance/Specs
- Modes
- How to assemble
- How to disassemble
- Suspension Slide Rail Adjustment & Motor Inspection
- How to change shock absorber
- How to test a faulty battery
Adventure App Walkthrough
Technical Documents
